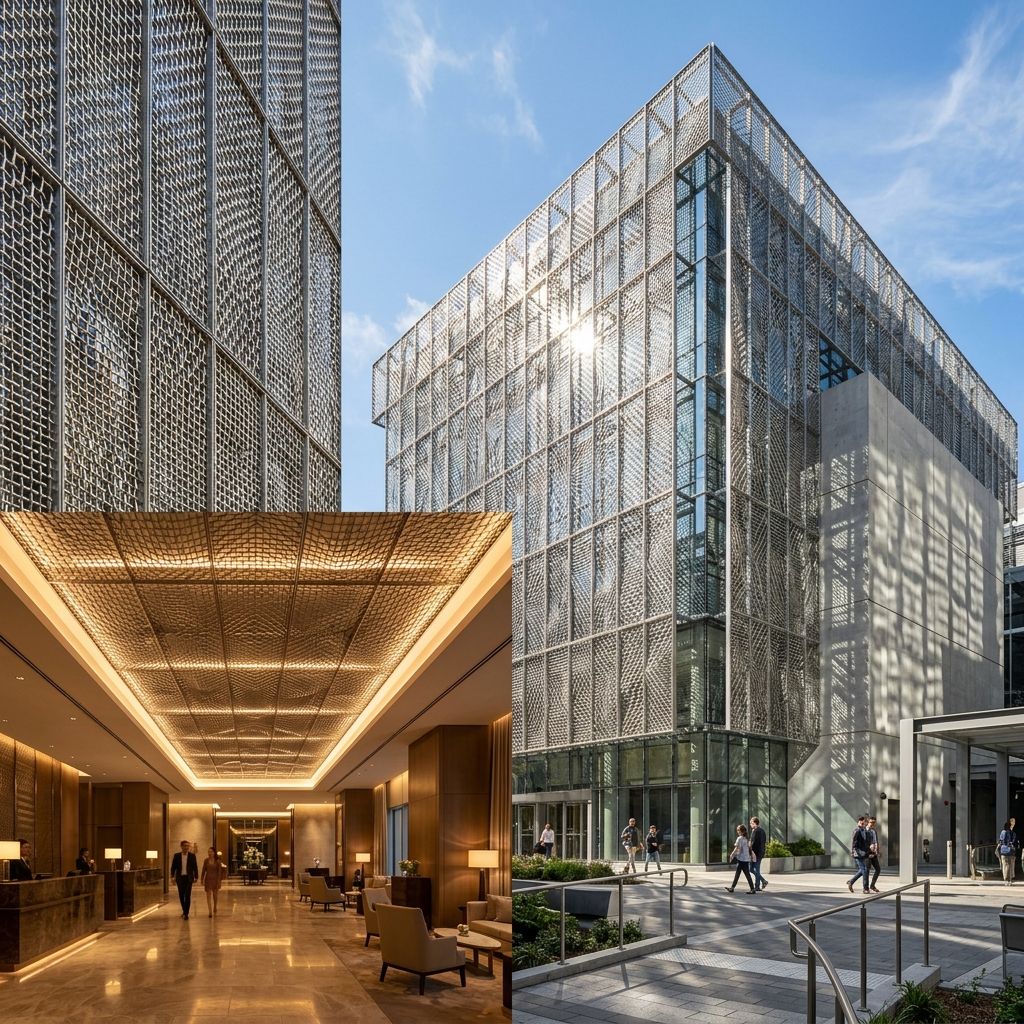

Architectural Metal Mesh: Applications in Facade, Ceiling & Interior Design
A technical guide to architectural woven metal mesh — covering facade screening, suspended ceilings, interior feature walls, and media facades. Includes specification data for GKD Omega, Tigris, and Mandarin mesh systems.
Architectural Metal Mesh: Applications in Facade, Ceiling & Interior Design
Architectural woven metal mesh is one of the most visually distinctive and technically sophisticated cladding materials available to the modern architect. It creates facades that shimmer and transform with changing light, reduces solar heat gain while maintaining visual permeability, and can even serve as a dynamic LED media surface. Yet it remains underspecified in Vietnam's architecture market — largely due to unfamiliarity with its technical parameters.
This guide covers the primary application categories, key technical specifications, and project references that demonstrate what architectural metal mesh can achieve.
What Is Architectural Woven Metal Mesh?
Unlike expanded metal or perforated sheet, woven metal mesh is manufactured on industrial looms using metal wire or flat strips. The weaving pattern determines the mesh's openness, light diffusion, reflectivity, and structural behaviour.
Key raw materials include:
- Stainless steel 316L — standard for exterior facades, especially coastal applications
- Aluminium alloy — lighter weight, suitable for interior ceilings
- Copper / brass alloy — for warm, oxidised aesthetic effects
- Stainless with PVD coating — gold, bronze, black, or coloured finishes
GKD Metal Fabrics, one of HIASHI's partner brands, has been manufacturing precision woven architectural mesh since 1925 and holds patents on several weave geometries used in landmark buildings globally.
Application 1: Exterior Facade Screening
How It Works
Metal mesh is attached to a secondary subframe — either as a ventilated rainscreen over a primary cladding layer, or as a decorative scrim in front of glazing or solid wall panels. The mesh layer:
- Reduces direct solar radiation by 20–60% (depending on mesh openness)
- Diffuses glare on glass curtain walls
- Creates a visual texture that animates with sun angle and weather
- Provides security screening without total opacity
Key Specification Parameters
| Parameter | Description | Typical Range |
|---|---|---|
| Wire diameter | Thickness of individual wire | 0.5mm – 4.0mm |
| Mesh opening | % open area | 15% – 75% |
| Panel weight | Load on subframe | 3 – 18 kg/m² |
| Drape radius | How tightly mesh can curve | 800mm – flat only |
| Surface finish | Mill finish / PVD / painted | — |
| Panel size | Maximum without visible seam | Up to 3m × 8m (GKD Omega) |
Featured Products
GKD Omega 1520 — 1.5mm wires, 20% opening, excellent for high-rise solar screening. Used at LAX Metro Transit Center (Los Angeles, 2026).
GKD Tigris 3215 — 3.2mm wires, 15% opening, heavier weave for dramatic visual mass. Specified for corporate headquarters and cultural buildings.
Application 2: Suspended Metal Mesh Ceilings
Interior suspended ceiling is the most accessible application of architectural metal mesh — it requires no external weather resistance, eliminates UV concerns, and the visual effect is immediate and dramatic.
Why Metal Mesh Ceilings Work
Traditional ceiling systems (mineral tile, gypsum, wood) end at the ceiling plane. Metal mesh creates:
- Visual depth — MEP services (ductwork, pipes, cables) above the mesh remain partially visible but aesthetically filtered
- Acoustic absorption — open mesh allows sound energy to pass through to a rockwool blanket above, improving reverberation
- Light diffusion — indirect luminaires above the mesh glow through it, creating a luminous ceiling without visible fixtures
- Air circulation — HVAC supply and return can flow through the open mesh, eliminating the need to penetrate the ceiling plane with diffuser grilles
Specification for Interior Ceilings
| Parameter | Interior Specification |
|---|---|
| Material | Aluminium alloy (lighter, no corrosion concern) |
| Mesh opening | 30–60% (allows acoustic + visual transparency) |
| Panel suspension | T-grid, wire suspension, or custom aluminium frame |
| Fire classification | A2 aluminium alloy — non-combustible |
| Acoustic performance | Reduction in RT60 of 0.2–0.4s (combined with rockwool) |
Applications in Vietnam
- Hotel lobby ceilings (replace conventional coffered ceiling with luminous mesh)
- Airport terminal ceilings (acoustic + visual permeability)
- Commercial retail — open-plan offices with service integration
Application 3: Interior Feature Walls & Partitions
Woven metal mesh can be framed and used as a room divider, stairwell screen, or feature wall panel. It creates a sense of space division without total visual enclosure — ideal for high-end hospitality environments.
Design Variations
- Tensioned mesh panels — stretched flat in aluminium frames, no visible structure
- Draped mesh — loose-hanging with natural fabric-like folds
- Backlit mesh — LED strip behind mesh creates a glowing wall effect
Material Selection for Interior Feature Walls
| Look | Material | Finish |
|---|---|---|
| Industrial / contemporary | Stainless 316L | Mill finish |
| Warm / luxurious | Brass alloy or copper | Polished / natural oxidation |
| Dark / dramatic | Stainless 316L | PVD black or bronze |
| Coloured accent | Stainless 316L | PVD in custom colour |
Application 4: LED MEDIAMESH® Dynamic Facade
GKD's patented MEDIAMESH® technology integrates flexible LED strip lighting into the woven wire mesh. The result is a building facade that functions as a high-resolution video display visible from hundreds of metres away — while remaining completely transparent close-up.
Key Specifications
- LED strips integrated directly into wire weave at 50mm pitch
- Resolution: 50mm pixel pitch (suitable for large-scale architectural imagery)
- Brightness: 5,000 nit (highly visible in daylight)
- Power consumption: 160–320 W/m²
- IP rating: IP65 (weatherproof for exterior installation)
Notable Projects
- Bluestone Travel Plaza (West Virginia, USA) — highway-scale LED mesh facade visible from Interstate 77
- National Grand Theatre, Peking — ambient LED lighting integrated into architectural mesh skin
Fire & Structural Compliance
| Concern | Metal Mesh Performance |
|---|---|
| Fire classification | A1 — non-combustible (stainless steel or aluminium) |
| Wind load | Mesh is highly wind-permeable — dramatically lower wind load than solid cladding |
| Seismic behaviour | Flexible mesh absorbs movement — suitable for seismic zones |
| Corrosion (coastal) | SS316L resists salt spray — specify with ASTM B117 test report |
Sourcing Architectural Metal Mesh in Vietnam
HIASHI is the official authorised sourcing partner for GKD Metal Fabrics in Vietnam. GKD is publicly listed on gkd-group.com/en/architecture as HIASHI's Vietnam partner.
We can provide:
- ✅ Official GKD technical data sheets, structural test reports, fire certificates
- ✅ Physical sample panels (Omega, Tigris, Mandarin weaves)
- ✅ Preliminary wind-load and subframe design consultation
- ✅ Custom size and finish quotations
