Architectural Metal Mesh: Design, Performance & Applications for Facades and Interiors

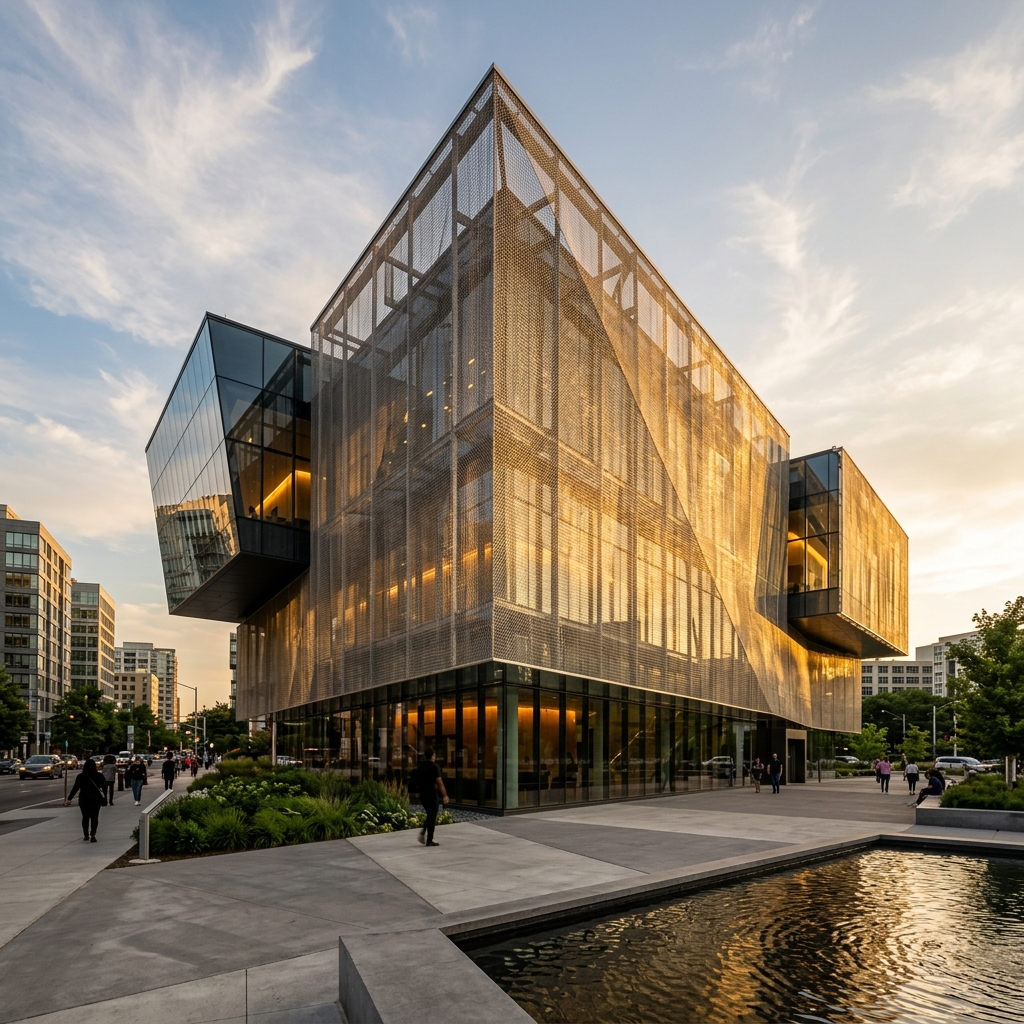

Architectural metal mesh occupies a unique position in the materials palette: it is simultaneously structural and decorative, opaque and transparent, protective and aesthetic. When light plays through a woven stainless steel mesh facade, the building becomes a living surface that changes with the sun, the angle of view, and the time of day.

Once reserved for landmark cultural buildings and corporate headquarters, architectural metal mesh is now increasingly specified for premium hotels, mixed-use developments, and high-end retail in Vietnam — driven by the growth of brands like GKD Metal Fabrics, which have made the material accessible to a wider range of projects.

---

1. Types of Architectural Metal Mesh

1.1 Woven Wire Mesh

The most refined and visually complex category. Metal wires are woven in patterns (plain weave, spiral weave, dutch weave) to create surfaces with extraordinary depth and texture.

Parameter	Specification Range
Wire diameter	0.5mm – 6mm
Aperture size	1mm – 50mm+
Open area	15% – 85%
Panel width	Up to 3,000mm
Panel length	Up to 10,000mm (roll)
Materials	Stainless steel 304/316, bronze, brass, aluminum, copper

1.2 Welded Wire Mesh

Wires are resistance-welded at intersections, creating a rigid grid pattern. More economical than woven mesh, with precise, regular geometry.

1.3 Expanded Metal Mesh

A solid metal sheet is slit and expanded to create a diamond or hexagonal pattern. No welds — the connections are integral to the sheet. Extremely strong and cost-effective for large areas.

1.4 Perforated Metal Panels

Precision holes punched through solid sheet aluminum or steel. Maximum design flexibility for pattern and image — digital perforation allows photographic images to be rendered as perforated patterns.

---

2. Performance Properties

Property	Woven Mesh	Welded Mesh	Expanded Metal	Perforated Panel
Open area range	15–85%	30–70%	40–75%	10–60%
Structural rigidity	Low–Medium	Medium	High	High
Solar shading coefficient	0.15–0.70	0.30–0.65	0.25–0.60	0.40–0.80
Wind resistance	Requires tension/frame	Good	Excellent	Excellent
Visual depth effect	Very high	Medium	Medium	Low
Cost relative	Premium	Mid	Mid–Low	Mid

---

3. Solar Shading Performance

One of the most valuable functional applications of metal mesh in Vietnam's tropical climate is solar shading. A correctly specified mesh facade can:

• Reduce direct solar gain by 30–70% (depending on open area and orientation)
• Lower HVAC cooling load by 10–25%
• Eliminate or reduce blind requirements on glazed facades
• Maintain outward views from inside the building

Solar Shading Design Guide

Building Orientation	Recommended Open Area	Preferred Mesh Type
West facade (worst sun)	15–30%	Dense woven or perforated
East facade	30–45%	Medium woven or expanded
South facade	40–60%	Open woven or expanded
North facade	60–80%	Open woven (aesthetic only)

---

4. GKD Metal Fabrics: The Global Benchmark

GKD (Gebr. Kufferath AG, Germany) is the world's leading manufacturer of architectural metal mesh, and is represented in Vietnam through HIASHI's sourcing network. Their product range includes:

MEDIAMESH® — LED-Integrated Mesh

GKD's revolutionary MEDIAMESH integrates LED strips directly into the weave structure, turning the facade into a transparent LED display. At night, it becomes a high-resolution video surface visible from hundreds of meters; during the day, it is simply an elegant metal mesh facade.

Applications: Retail flagship stores, entertainment venues, landmark hotel facades, cultural buildings.

ESCALE® — Woven Facade Mesh

The architectural facade mesh range — available in various weave patterns and wire diameters for rainscreen facades, canopies, balustrades, and interior feature walls.

TIGRIS® — Rigid Mesh Panels

Pre-framed rigid panels for applications requiring structural integrity without a secondary frame — ceiling panels, wall cladding, signage systems.

---

5. Interior Applications

Metal mesh is equally powerful as an interior material:

Interior Application	Mesh Type	Notes
Feature wall / partition	Woven stainless or bronze	Can be backlit for dramatic effect
Stair balustrade infill	Welded or woven	Must meet TCVN balustrade load requirements
Ceiling feature	Woven aluminum (lightweight)	Suspended from secondary structure
Reception counter cladding	Perforated or expanded	Combined with backlight
Room divider / screen	Woven (flexible)	Can be custom-shaped
Lift door facing	Perforated stainless	Highly durable, easy to clean

---

6. Specification Checklist

When specifying architectural metal mesh:

• ✅ Material grade: Specify SS316 for coastal/outdoor; SS304 acceptable for interior
• ✅ Surface treatment: Electropolished (smooth, hygienic), mill finish, or PVD-colored
• ✅ Open area %: Must match solar shading and privacy requirements
• ✅ Wind load test: Request wind load test data if used as a facade element
• ✅ Fixing system: Tension cables, rigid frames, or clip systems — must match panel type
• ✅ Fire classification: Most metal mesh achieves A1 — verify for project requirements
• ✅ Maintenance: Specify cleaning protocol — mesh accumulates dust; pressure washing schedule

---
